Filters

Advantages

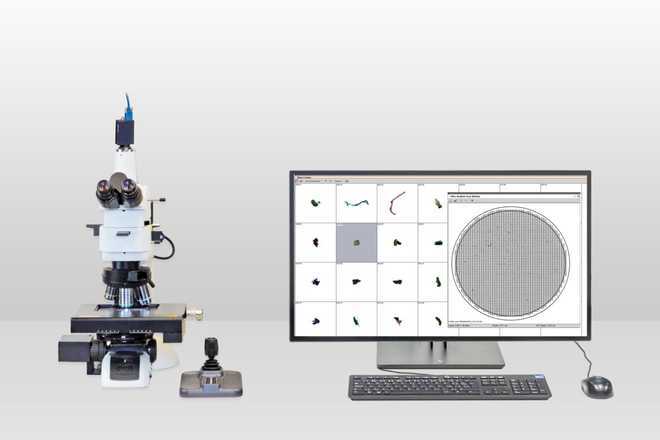

filterscan system image

The image analysis system simply called “Filters” is aimed at analysing the cleanliness of filters according to the ISO 16232 and ISO 4406 international standards.

  • The main advantages include accuracy, stability, reliability and reproducibility of measurements.

  • Measurement and scanning is fully automatically controlled from the PC.

  • The operator has full control over the system at any time, he can pause the measurement and check the measured parameters or detection progress.

  • The operation of the system is clear and simple.

  • Advanced image analysis tools can be used for more detailed procedures not prescribed by the standard, such as moving the stage to the largest detected particles and examining them, extending the set of measured parameters and more.

  • Unevenness on the filter is corrected by several sharpening methods.

Filter Analysis

The Filters system automatically scans and evaluates the examined filters. The measurement is carried out in accordance with the ISO 16232 and ISO 4406 standards and usually takes three steps:

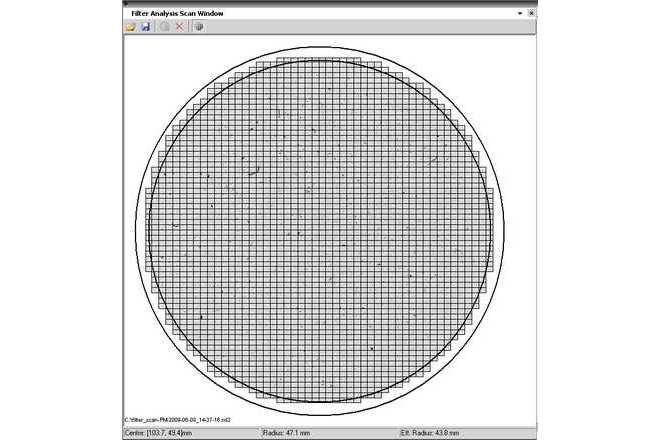

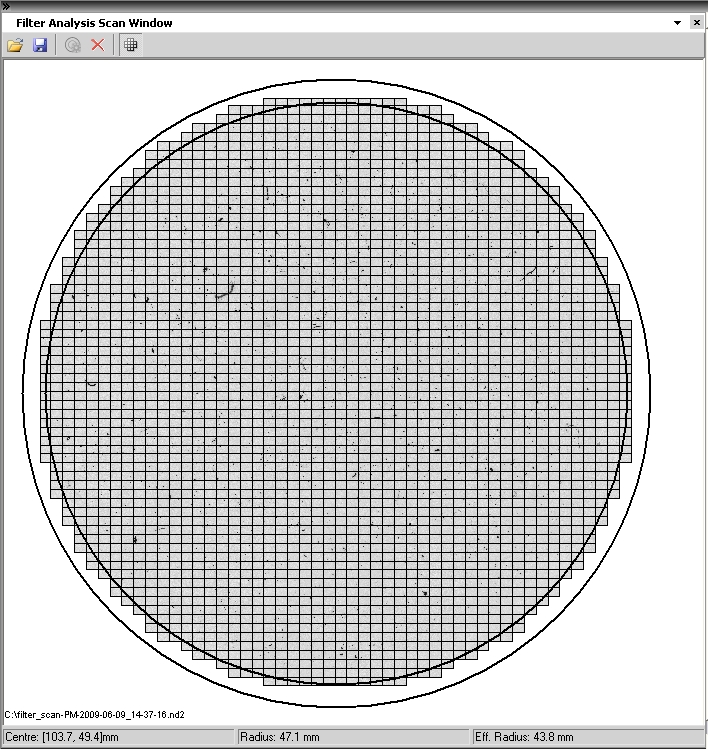

  1. The system scans the entire filter and saves the image to disk - it is called virtualization of the filter.

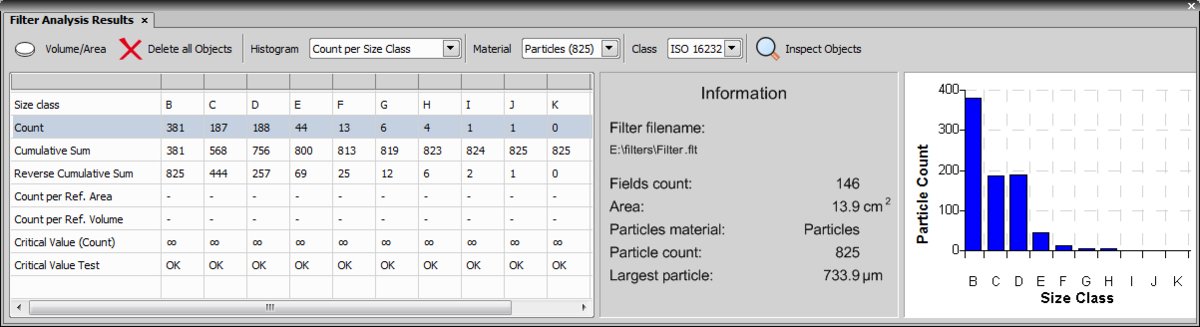

  2. The virtualized (scanned) filter image opens in the software and is automatically measured.

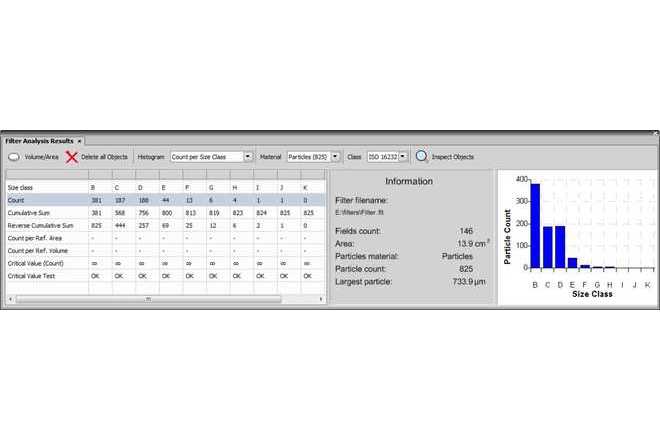

  3. A report is generated containing the measurement result.

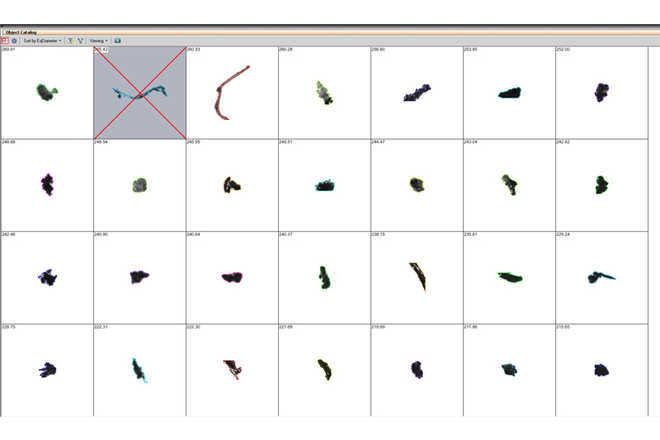

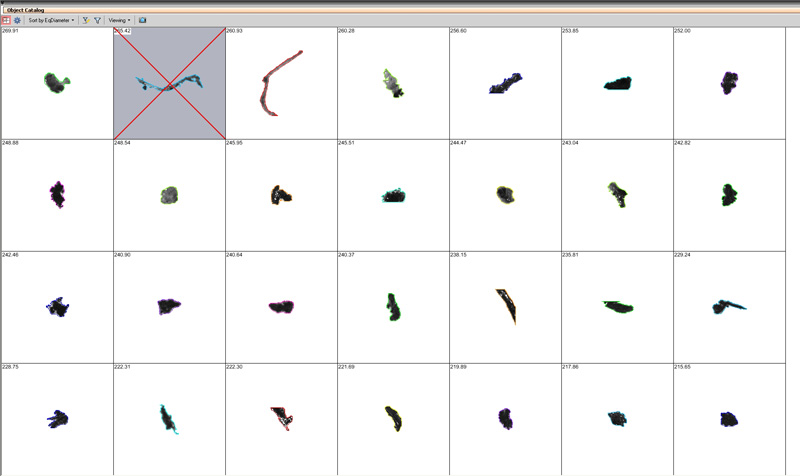

The virtualization and measurement phases are independent of each other and can run on two different computers for optimal use of the hardware resources. The virtualized filter can of course be archived in electronic form. Detected particles can be viewed arranged in a gallery.

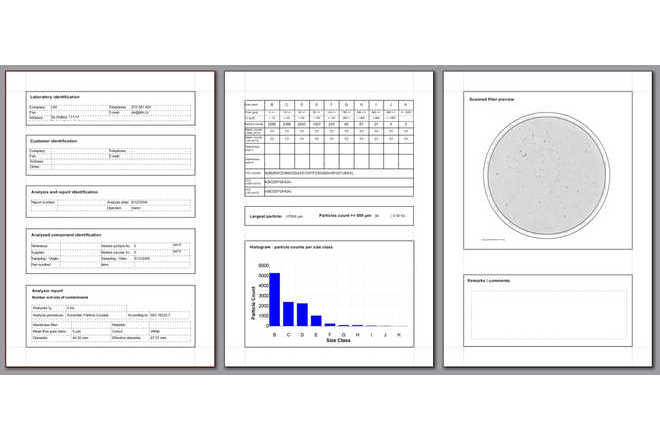

Reports

Thanks to great variability of the reporting tool, measurement outputs can be easily modified for various purposes, for example to ensure compliance with your company standards. Compliance with ISO standards is a matter of course.
